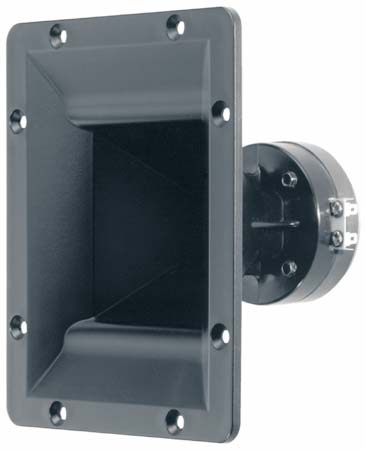

VISATON HTH 8.7 8 OHM TORVIDISKANTTI

Professional CD-Horn (constant directivity) for the highrange above 3000 Hz. The square shaped horn system is made of rugged black plastic and equipped with a 25 mm voice-coil for high power handling. The horn can therefore be used as an ideal highrange component for compact 2- and 3-way-speakers used as stage monitors or small PA for instruments and vocals.

Technical Data:
Nominal power handling with high pass	200 W (12 dB/Okt.; 5000 Hz)
Peak power handling with high pass	300 W (12 dB/Okt.; 5000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	1200–16000 Hz
Mean sound pressure level	106 dB (1 W/1 m)
Opening angle (-6 dB)	75°/4000 Hz hor. 69°/4000 Hz vert.
Resonance frequency fs	1900 Hz
Magnetic induction	1,5 T
Voice coil diameter	25 mm
Cutout diameter	123 x 165 mm
Net weight	0,95 kg
